Pompe de circualatie electronice cu magneti permanenti - motoare sincrone:

  • NMT PLUS

    • Technical specification
    Qmax up to 6 m3/h
    Hmax up to 8 m
    DN 15/20/25/32
    pipe connection Rp 1/2 Rp 3 /4 Rp 1/ Rp 11/4
    Insulation class F
    Degree of protection IP 44
    Voltage 1 ~ 230V, 50 Hz
    Material
    Hydraulic casing cast iron/bronze
    Impeller polyamid
    Shaft ceramics
    Bearings ceramics
    Rotor can stainless steel AISI 316



    nmt_plus_plus nmt_plus_double nmt_san_plus

  • Variante NMT PLUS
    • NMT PLUS ER -- modul comunicare cu intrare digitala anloaga 0-10V
    • NMTD PLUS -- pompa dubla
    • NMT PLUS SAN -- pompa pentr ACM
    • NMT PLUS PWM -- solar / heating profile -- intrare digitala

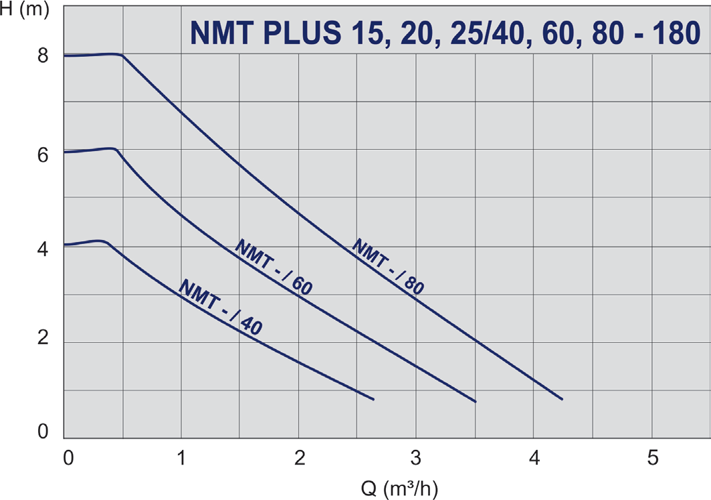

    nmt_plus_d1

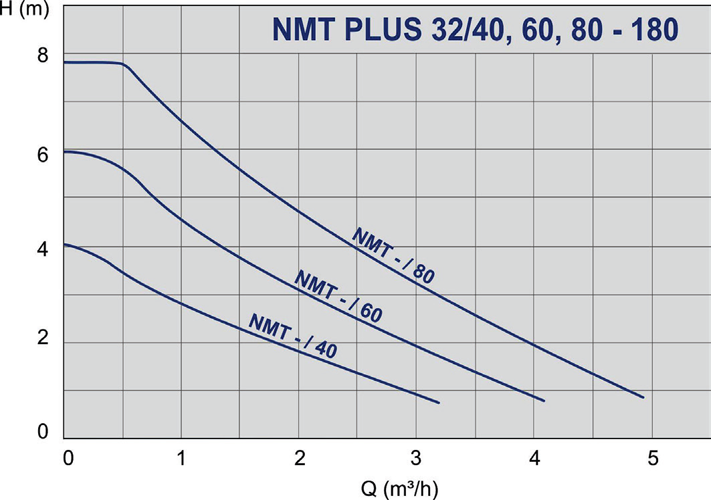

    nmt_plus_d2
