Pompe de circualatie electronice cu magneti permanenti - motoare sincrone:


  • NMT SMART

    • Technical specification
    Qmax up to 12 m3/h
    Hmax up to 12 m
    P PN 10 Bar
    DN 25/32/40/50
    pipe connection Rp 1/ Rp 11/4
    installation flange, threaded
    Insulation class F
    Degree of protection IP 44
    Voltage 1 ~ 230V, 50 Hz
    Material
    Hydraulic casing cast iron/bronze
    Impeller PES
    Shaft stainless steel AISI 316
    Bearings grafit
    Rotor can stainless steel AISI 316

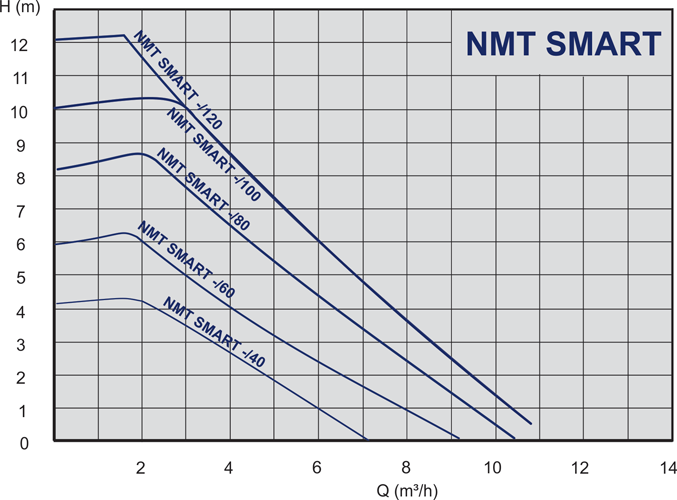

    nmt_smart nmt_smart_double

    nmt_smart_d
