Pompe de circualatie electronice cu magneti permanenti - motoare sincrone:

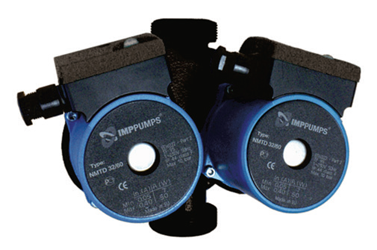

• NMT PLUS

Technical specification Qmax up to 6 m3/h Hmax up to 8 m DN 15/20/25/32 pipe connection Rp 1/2 Rp 3 /4 Rp 1/ Rp 11/4 Insulation class F Degree of protection IP 44 Voltage 1 ~ 230V, 50 Hz

Material Hydraulic casing cast iron/bronze Impeller polyamid Shaft ceramics Bearings ceramics Rotor can stainless steel AISI 316


• Motor cu magneti permanenti
• Tehnologie ECM de inalta eficienta
• Protectie electrica integrata
• Metode de control
• Controlul proportional al presiunii - dupa selectarea nivelului pompa recunoaste cea mai mica rezistenta din sistem si se regleaza automat
• Viteza constanta - dupa selectare pompa lucreaza in 3 viteze diferite
• Aerisire automata



• NMT MINI

inlocuieste gama NMT PLUS


• NMT SMART sau NMT MAX


Prin intermediul display-ului montat pe pompa poti controla si verifica parametrii, modurile de functionare si erorile.


	1. Bar graph display of pump parameters
	2. Numeric display of values
	3. Display of selected parameter
	4. Display of selected mode
	5. Selection key
	6. Confirmation key
	7. Selection key



• Pompa poate fi operata in 5 moduri diferite
• Automatic mode
• Proportional pressure
• Constant pressure
• Constant speed
• Night mode

Modulul de comunicatie poate fi optional montat pe pompele tip NMT SMART si NMT MAX sau poate fi comandat direct pentru NMT SMART, MAX. Modulul (NMTC) poate fi folosit la diverse aplicatii:


	1. REMOTE ON/OFF
	2. ANALOG 0-10V VOLTAGE CONTROL
	3. MODBUS REMOTE CONTROL
	4. STATUS RELAY FEEDBACK
	5. WEB ACCESS OVER ETHERNET
	6. 3 analog inputs/outputs
	7. 1 rele output

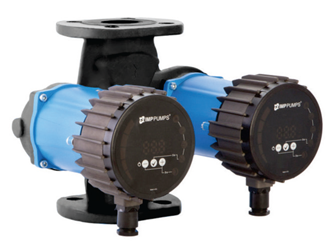

• NMT SMART

Technical specification Qmax up to 12 m3/h Hmax up to 12 m P PN 10 Bar DN 25/32/40/50 pipe connection Rp 1/ Rp 11/4 installation flange, threaded Insulation class F Degree of protection IP 44 Voltage 1 ~ 230V, 50 Hz

Material Hydraulic casing cast iron/bronze Impeller PES Shaft stainless steel AISI 316 Bearings grafit Rotor can stainless steel AISI 316




• NMT MAX

Technical specification Qmax up to 72,70 m3/h Hmax up to 18,90 m P PN 6 / 10 Bar DN 40/50/65/80/100 installation flange Insulation class F Degree of protection IP 44 Voltage 1 ~ 230V, 50 Hz

Material Hydraulic casing cast iron/bronze Impeller PES Shaft stainless steel AISI 316 Bearings grafit Rotor can stainless steel AISI 316




• SAN - pompe de circulatie pentru ACM

• SAN ECO - pompe de circulatie pentru ACM pentru aplicatii domestice
• SAN - pompe de circulatie pentru ACM cu prindere pe filet
• SAN basic - pompe de circulatie pentru ACM cu prindere pe flanse
• SAN NMT (PLUS / SMART / MAX) - pompe de circulatie pentru ACM electronice



Technical specification Qmax up to 8,4 m3/h Hmax up to 8 m DN 15/20/25/32 pipe connection Rp 1/2 Rp 3 /4 Rp 1/ Rp 11/4 installation threaded Insulation class H Degree of protection IP 44 Voltage 1 ~ 230V, 50 Hz

Material Hydraulic casing bronze Impeller polyamid, PES Shaft stainless steel AISI 316/ceramics Bearings grafit/ceramics Rotor can stainless steel AISI 316
